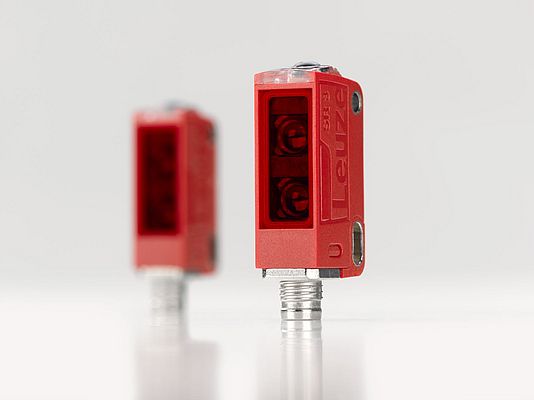

With the new ODT3CL1-2M laser diffuse sensor Leuze extends the operating range of their 3C series distance sensors. Thanks to innovative time-of-flight (TOF) technology, the switching and measuring sensor with background suppression works with an operating range of up to two meters. This makes the sensor suitable for all applications in intralogistics where long distances need to be bridged: e.g. in automated guided vehicles for monitoring the position of goods, for controlling robot grippers or in quality control. With the IP69K protection reliable use is guaranteed even under harsh conditions.
Practical 2-in-1 solution
With its two independent switching points, it is able to perform detection and measurement tasks at the same time. System operators can therefore solve both requirements using just one sensor. This is an advantage if, for example, shuttles are used: They can optimally set and vary their speed via the independent switching points. This enables goods to be transported quickly to their target position. IO-Link can be used to transmit measurement values and process data of the sensor to the machine control. This allows users to effortlessly evaluate the comprehensive diagnostic data from the diffuse sensor – e.g. temperature information, information on signal quality and warnings. Also changing of a device is easy as presettings are transferred to the new device loss-free via IO-Link without the sensor having to be taught in again.
Fits in any space
Thanks to its compact design (11.4 x 34.2 x 18.3 mm W x H x L), the ODT3CL1-2M laser diffuse sensor can also be used where space is limited. For example, it can be used in the gripper of a robot arm, on shuttles or stacker cranes. The small, clearly visible light spot allows fast alignment during commissioning. The operating range can be set numerically via IO-Link. Another advantage of the diffuse sensor is its integrated object test. This allows the function reserve to be quickly checked.
