Miniature Bevel Gearboxes

Suitable for high-load bearing

  • Miniature Bevel Gearboxes
    Miniature Bevel Gearboxes

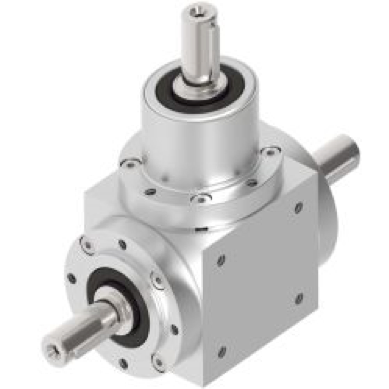

Mädler’s miniature angular gear units are ideal for applications in high load-bearing situations with a temperature ranging between -10°C to +90°C. Thanks to their robust construction and lubrication, the gearboxes have a long service life and the bearings have a minimum life time of 15.000 hours.

Various models available

Three designs and six standard versions are available, with the possibility of customization for multi-shaft gearboxes. The gearboxes are fully enclosed, protected against external agents and sealed against oil leaks.
