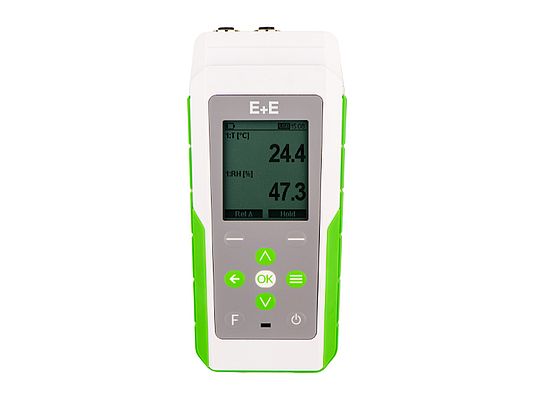

With the Omniport 40, E+E Elektronik is launching the new generation of its handheld measuring device. The Omniport 40 is characterised by a wide range of measurement options with up to seven measurement variables, maximum comfort and high efficiency. The device is particularly well suited for applications in the fields of maintenance, process monitoring and service. Combined with an integrated oil database, extensive data logging functions and a user-friendly and flexible operation, the Omniport 40 is the ideal companion for demanding applications in the field or during maintenance work.
The Omniport 40 handheld measuring device has been redesigned both visually and technically and offers a wide range of measuring options. A variety of parameters such as temperature, humidity, flow, dew point (down to -60° Td), oil moisture or CO₂ can be accurately measured on site with a single instrument using a wide range of handheld and process sensors. This saves the time required for individual measurements. All instruments are supplied with a 2.2 calibration certificate and the connected sensors can be adjusted directly from the handheld, depending on the type: 1-point, 2-point, offset or gain.
Automatic sensor detection
The Omniport 40 allows the parallel connection and use of up to two sensors. The sensors are automatically recognised. The user benefits from maximum convenience thanks to the simple interchangeability of sensors and the ability to record several measurement variables simultaneously. This not only saves time and reduces potential sources of error. It also significantly increases the efficiency of data acquisition and analysis. In addition, the Omniport 40 offers a comprehensive data logging function that can store up to 1 million data records. This makes it possible to store a large amount of measurement data over a long period of time without the need for regular export. The stored data can be retrieved at any time. The large storage capacity reduces administration costs and increases the efficiency of data evaluation.
Predefined measurement points
The Omniport 40's data logging function allows measurements to be recorded at pre-defined points. This allows the user to define precise measurement points and make recurring measurements, ensuring structured and efficient data collection. This not only ensures consistency of measurement data, but also reduces the amount of manual input required. Streamlined data collection increases accuracy and helps the user to conduct meaningful analysis in less time without wasting valuable resources.
The integrated oil library enables precise monitoring of moisture in oil and water activity in different types of oil. Users can access an extensive selection of oil data or add own data to precisely take into account the specific properties of the oil used. This function ensures reliable monitoring of the oil quality, prevents potential damage, and extends the service life of the systems. At the same time, maintenance costs can be reduced thanks to the early detection of signs of wear.
