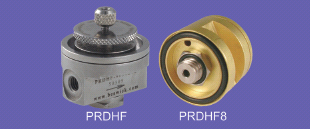

The PRDHF high flow regulator from Beswick weighs approximately 35g in brass & stainless steel and about 18.2g in aluminium. This non-relieving high flow regulator controls output pressures from 0 to 2 bar and is especially suited to low pressure regulation such as 0.034 bar. Maximum inlet supply pressure is 35 bar. Both the inlet and outlet ports are tapped 10-32 UNF. Its lightweight design allows convenient in-line mounting however a 10-32 threaded panel mount option is also offered. The PRDH8 manifold mount version has similar features as PRDHF except it weighs 52g in brass and stainless steel, and the inlet is a 5/16-24 UNF external thread and outlet port is through a 2.4mm diameter hole at the base of the regulator body. This design eliminates the need for fi tting and tubing connections as the regular mounts directly to the surface of a manifold. O-ring face seals insure a leak-tight connection.
Pressure Regulator
