Shaft Motor

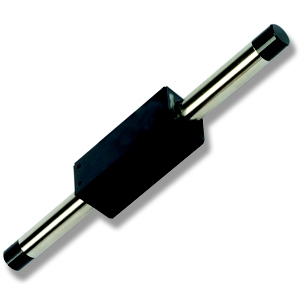

Nippon Pulse introduced the L427 series, a linear shaft servomotor that features a 5mm air gap between the forcer and the magnetic shaft. When there is the potential for debris to build up on the shaft, the 5mm air gap prevents the motor from jamming and increases the time required between cleanings. This motor features a usable stroke length between 100 and 4,600 millimeters and has a constant force of 110N. The motor’s peak force is 450N, while its force constant is 31(Kf) N/Amps. Other features of the product include a 42.7 mm shaft diameter, a 3.6A continuous current, a 14A peak current, a 10 V/m/s back EMF, and a 3kg forcer weight.
